Above Ground vs Below Ground
In ground oil water
separation systems commonly installed in carwashes lack many
features of our above ground Extreme Clean systems.
-
Gravity is not
required to move the water from the carwash collection
system into the oil/water separator. This cuts installation
and retrofit costs dramatically.
-
In-ground systems
can leak (undetected) causing ground water contamination
requiring very expensive remediation and removal costs.
-
In-ground system
very seldom have oil coalescing and skimming systems requiring
oils to be pumped and hauled away at high expense. Water
removed and hauled during the pumping process costs the
same as the oil.
-
Our above ground
systems are self purging and do not require a vacuum truck
to clean them out saving thousands of dollars each year.
-
Our above ground
systems can be easily integrated into a recycling system.
-
Many sizes are
available to meet the needs of the individual carwash
owner.
Specification
Sheet on Oil/Water Separators (PDF format) |
HE/S1
 |
HE/S1
|
Model HE/S1 is a
primary solids and oil/water separator. A self cleaning 3
compartment above ground sump that's self purging. Skid mounted
for simple installation. 330 gallons holding capacity, 72,000
sq. in. oil coalescing area and active oil skimming. Its pressurized
outlet pump will push water hundreds of feet to the sanitary
sewer without gravity flow.
Oil/Water Separator
Flow: 10 GPM Constant
Use: Hand held washes. Replace or use instead of in ground
oil water separators.
HE/S1
Oil Coalescing and Skimming Unit (PDF format) |
HE/S1-H
 |
HE/S1-H
|
Model HE/S1-H is
a primary solids and oil/water separator. A self cleaning
2 compartment above ground sump that's self purging. Skid
mounted for simple installation. 270 gallons holding capacity,
72,022 sq. in. oil coalescing area and active oil skimming.
Emulsified oils are polished out at 100 GPM though our unique
Hydrosorb media. This high flow polishing system exposes wastewater
to multiple passes through the filter media reducing hydrocarbons
to less than 10 ppm. Its automatic pressurized outlet pump
will push water hundreds of feet to the sanitary sewer or
additional filtration without gravity flow.
Water Recycler
& Oil Water Separator
Flow: 10 GPM Constant
Use: Hand held washes. Replace or use instead of in ground
oil water separators. An excellent water recycling system.
HE/S1-HCW
Oil Coalescing and Skimming Unit (PDF format) |

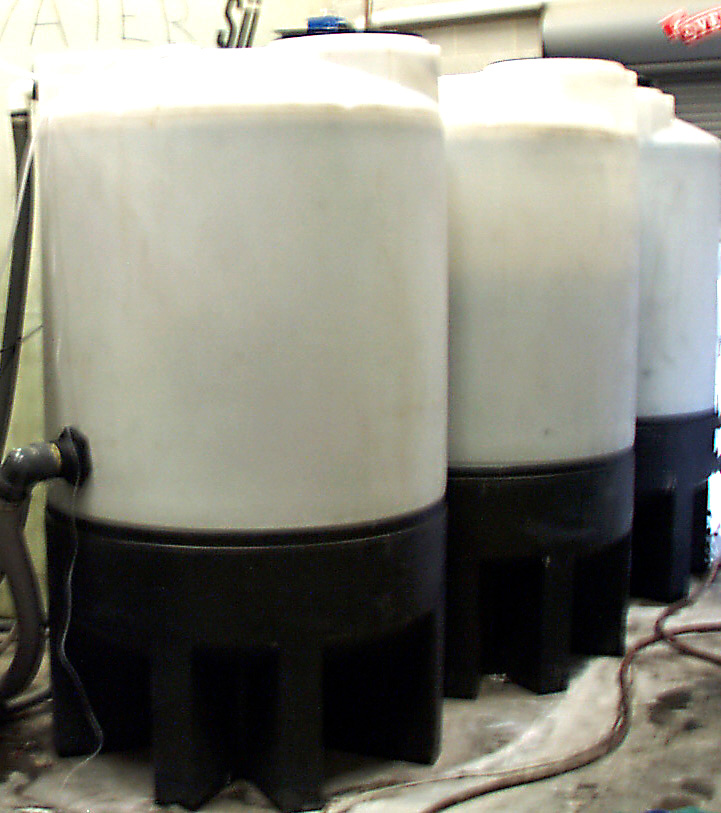

HE/S1-500
 |
HE/S1-500
|
Model HE/S1-500 is
a primary solids and oil/water separator. A self cleaning
3 compartment above ground sump that's self purging. Skid
mounted for simple installation. 330 gallons holding capacity,
450,000 sq. in. oil coalescing area and active oil skimming.
Its pressurized outlet pump will push water hundreds of feet
to the sanitary sewer without gravity flow.
1500 Gal. Oil Water
Separator
Flow: 50 GPM Constant
Use: Hand held washes. Replace or use instead of in ground
oil/water separators.
HE/S1-500
Oil Coalescing and Skimming Unit (PDF format) |

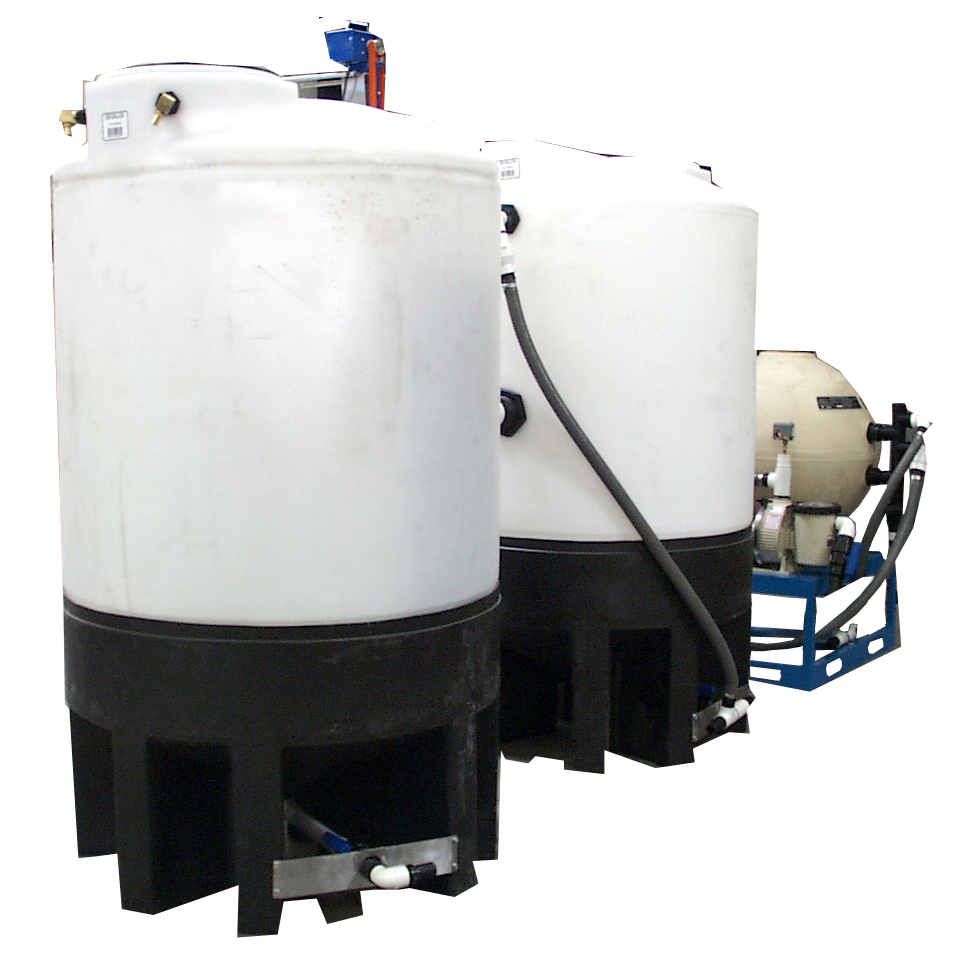

HE/S1-500-H
 |
HE/S1-500HCW
|
Model HE/S1-500H
is a primary solids and oil/water separator. A self cleaning
2 compartment above ground sump that's self purging and pre-plumbed
for simple installation. 1000 gallons holding capacity, 225,043
sqin. oil coalescing area and active oil skimming along with
emulsified oils removal. Its pressurized outlet pump will
push water hundreds of feet to the sanitary sewer or back
to the car wash equipment without gravity flow.
Water Recycler
& Oil/Water Separator
Flow: 50 GPM Constant
Use: Multiple- tunnel (friction), automatics and hand held
washes. Replace or use instead of in ground oil water separators.
An excellent water recycling system.
HE/S1-500HCW Oil Coalescing
and Skimming Unit (PDF format) |
|
