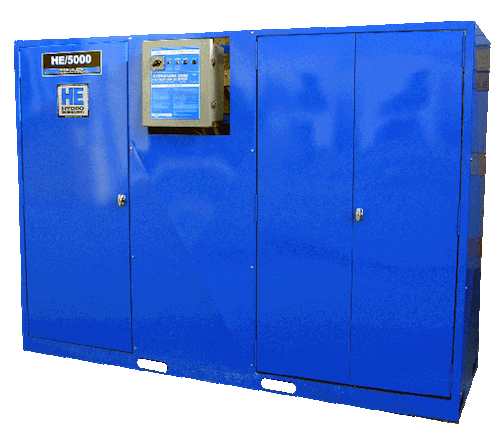

  HE/5000, single stage multi-media
system with oil coalescing
|
The Best
In Waste Water Filtration, Pre-treatment Or Recycling
Systems
|
- Certified to CE and UL standards for the EU, USA, and Canada
- Overflow protection
- Self-cleaning tanks
- Gravity flow-through design
- Cone bottom primary solids settling tank
- 76,896 sq. in. of oil coalescing plates
- Oil belt skimmer with oil/water decanter
- Filtration for solids, light hydrocarbons or metals
- PLC controls daily operation and maintenance functions
- Optional remote operation monitoring, with data logging and alert messages delivered by e-mail to your computer or phone.
HE/5000 Specifications (PDF format)
1
Minute Video On HE/5000(Real Player)
|
How The HE/5000 Works
The HE/5000 is designed with two complete
modules: 1. Oil water separation. 2. A polishing loop for
solids removal. As dirty water enters the HE/5000, it is slowed
down to allow for solids to fall to the bottom of the coalescing
tank and for oil/water separation to begin. By gravity oily water
flows through 76,896 square inches of oil coalescing plates.
These plates allow for the oil to gather together into large
droplets where they can float to the surface and be mechanicaly
skimmed form the water. Virtually oil-free water then flows
to a multi media-polishing loop, which can either reduce light
and emulsified hydrocarbons, or suspended solids to < 1
micron. The polishing loop flows water at 50 GPM, assuring multiple
passes through the job-specific media which prepares the water
for recycling or direct to sewer discharge. Thus a polishing
filtration system! |
|
