Hydropad Gutters

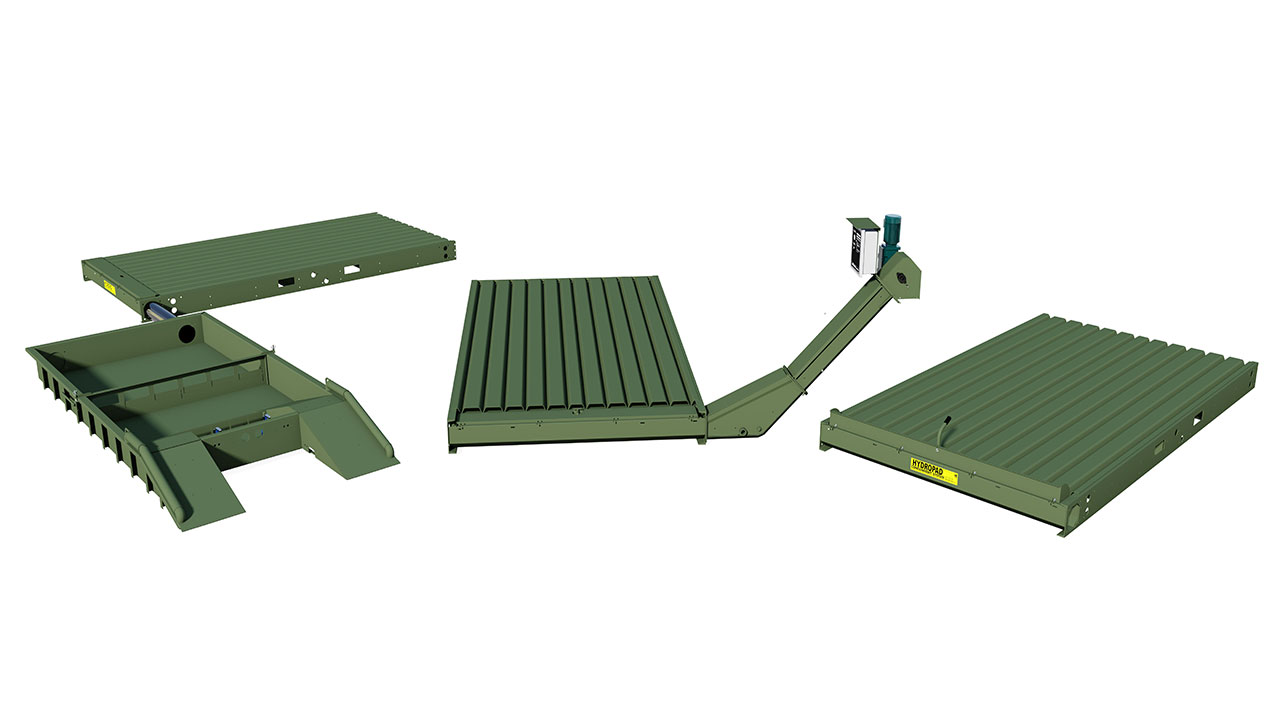

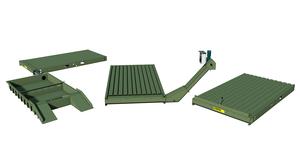

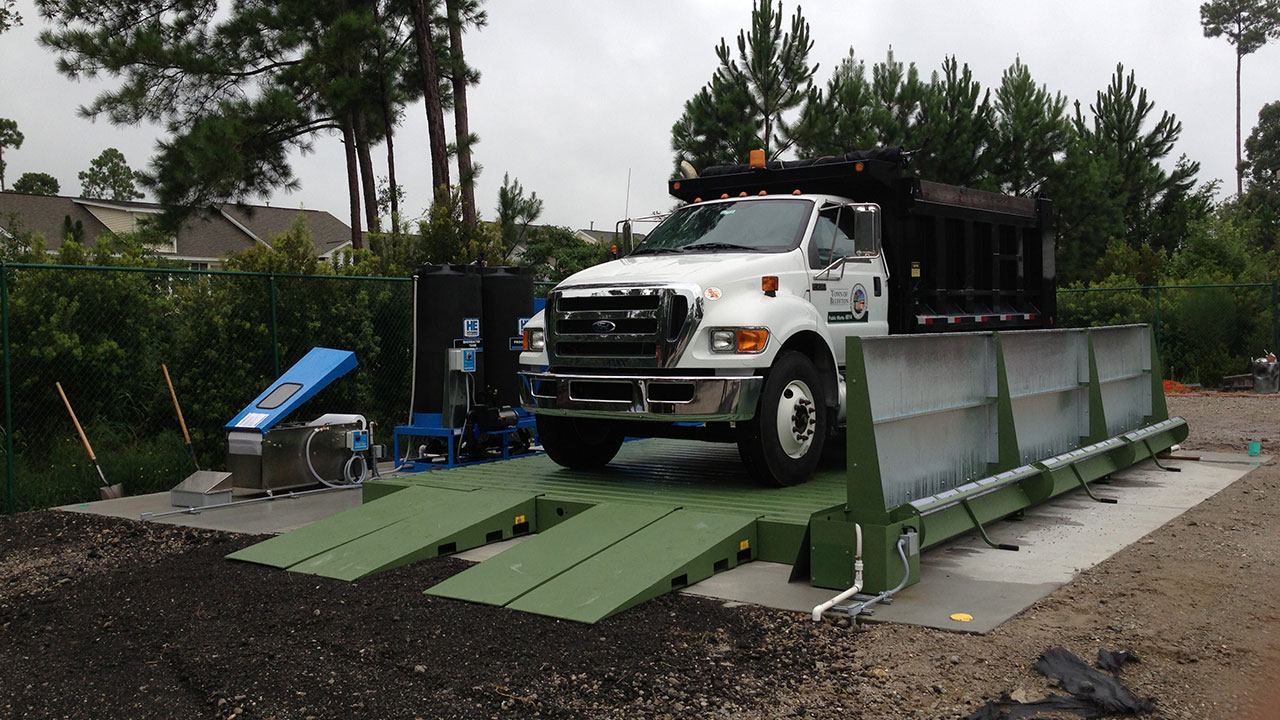

Hydropad above ground steel containment wash racks with engineered solutions for solids/liquid separation include: skid steer drive in clean out trays, side gutter drag conveyors and fine particle flip screens.

Hydropad Gutters

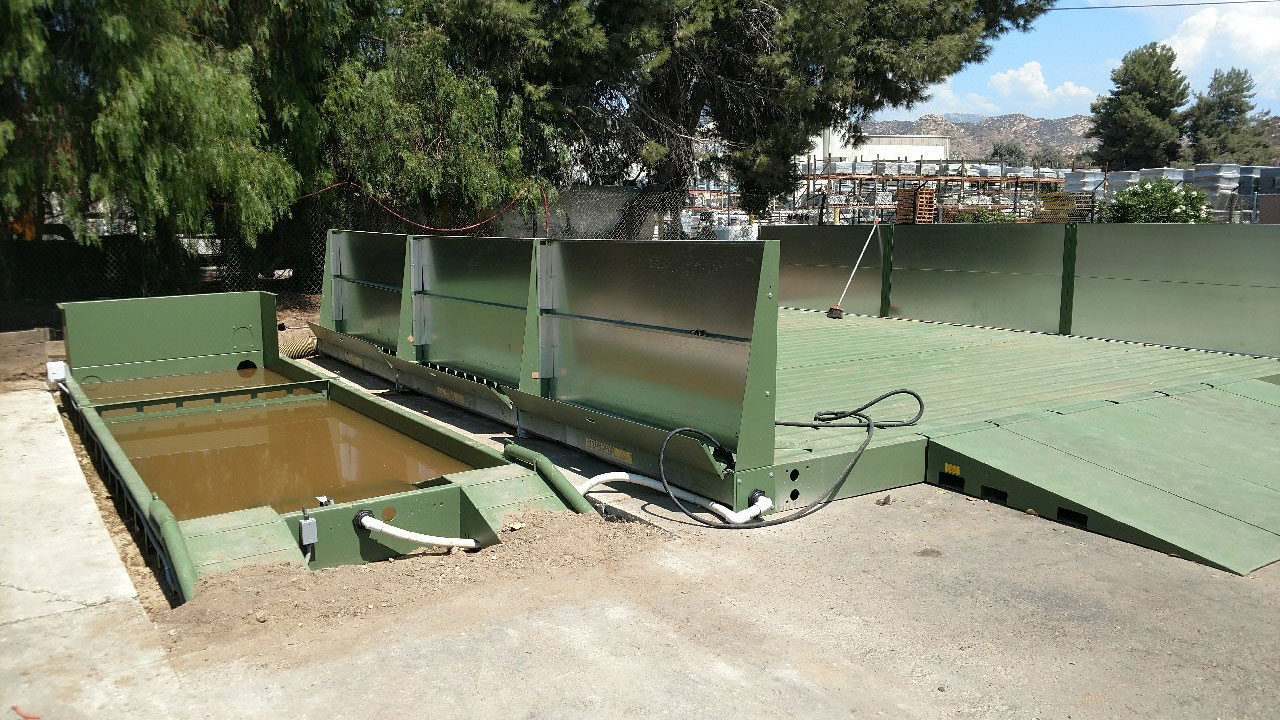

Skid steer drive in clean out trays can be added to any Hydropad above ground steel containment wash rack. Solids and wastewater flow from wash rack surface into the Hydropad side gutter and then into the drive in clean out tray. A series of weirs provide settling for solids which can be periodically removed via a skid steer.

Hydropad Gutters

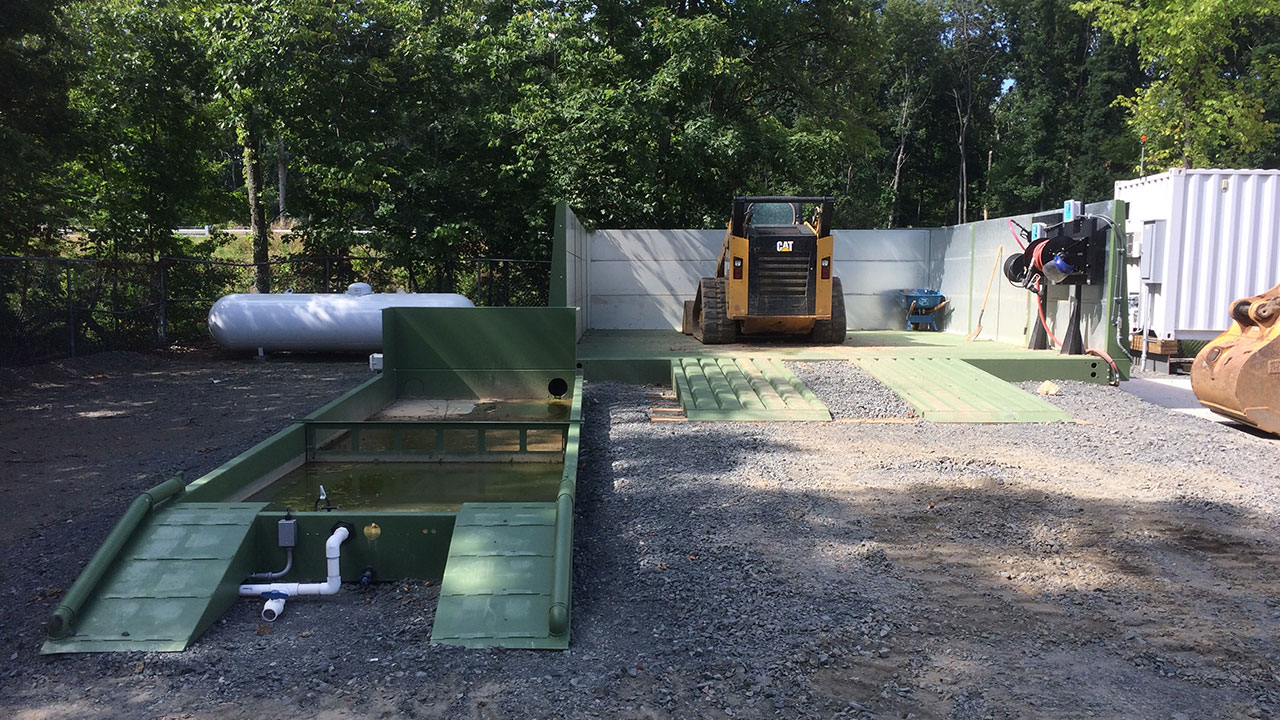

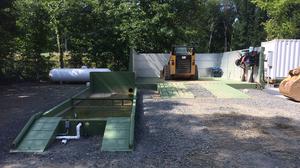

Skid steer drive in clean out tray connected to the above ground steel containment wash rack provides solids/liquid separation and are a great solution for removal of solids in vehicle and equipment cleaning applications.

Hydropad Gutters

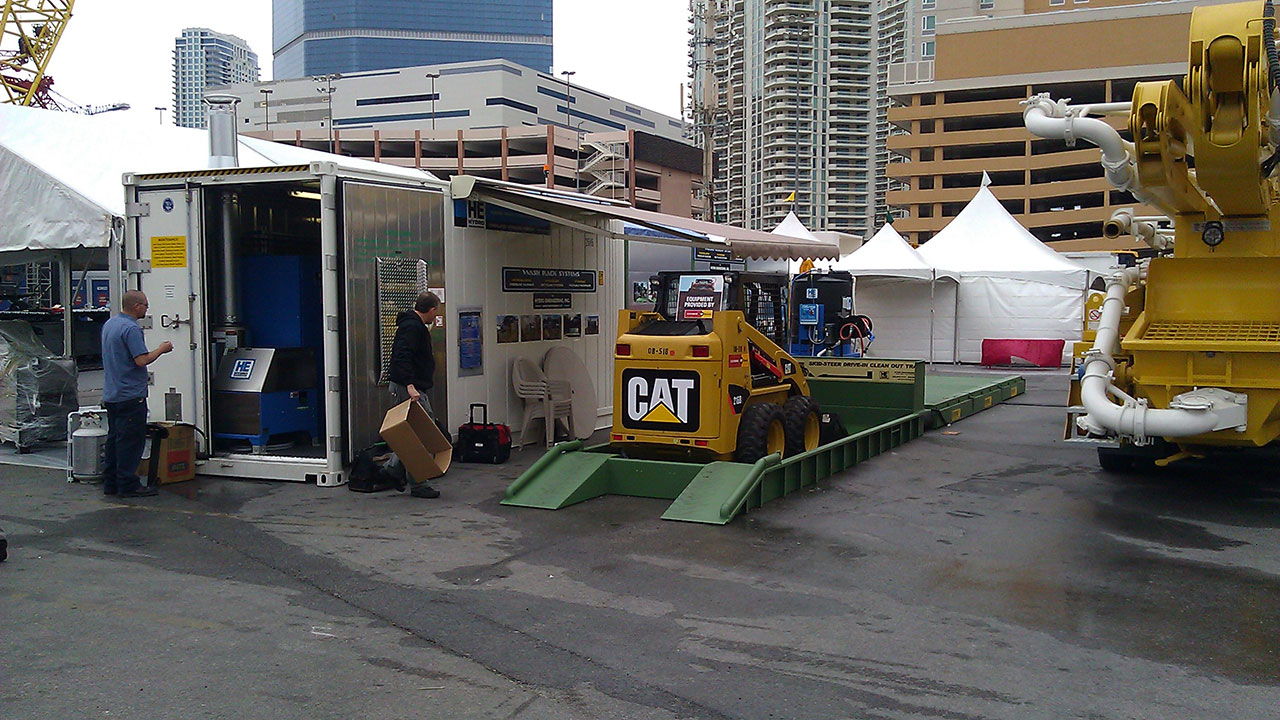

A skid steer is removing solids from this drive in clean out tray. Both the Hydropad wash rack and skid steer drive in tray simply sit on the ground, no construction is required. Establish a wash rack anywhere it is required.

Hydropad Gutters

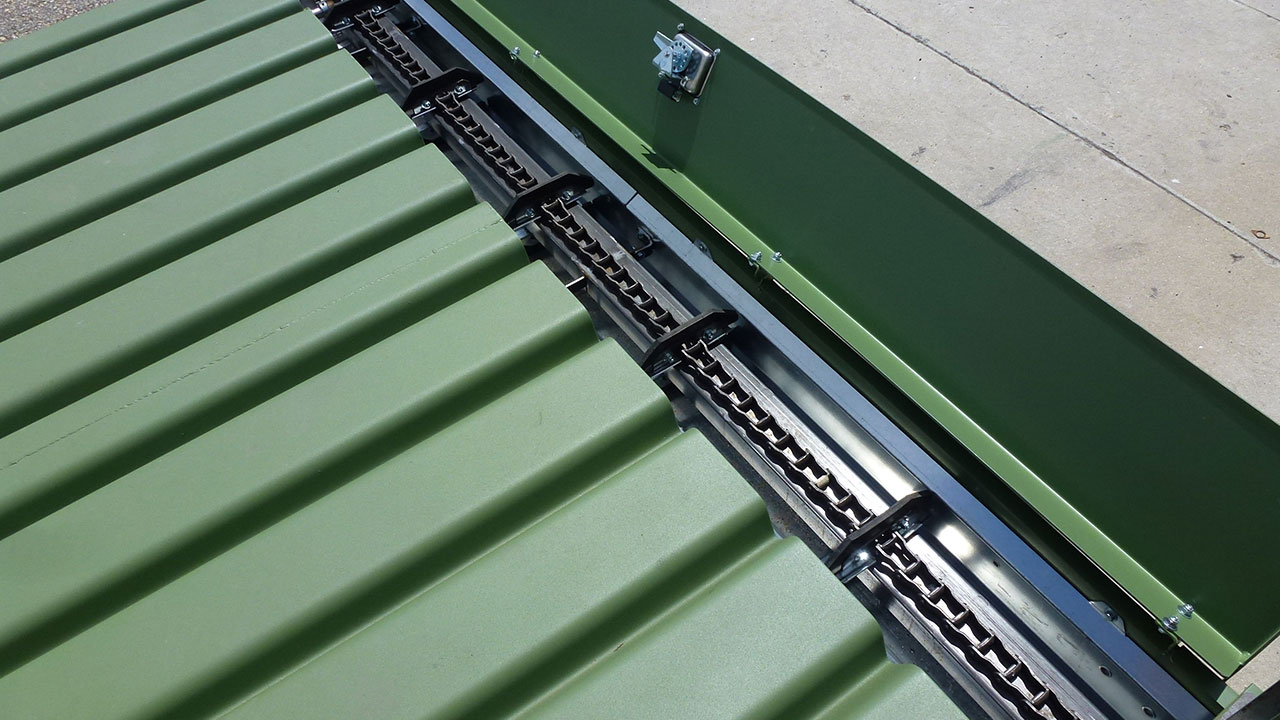

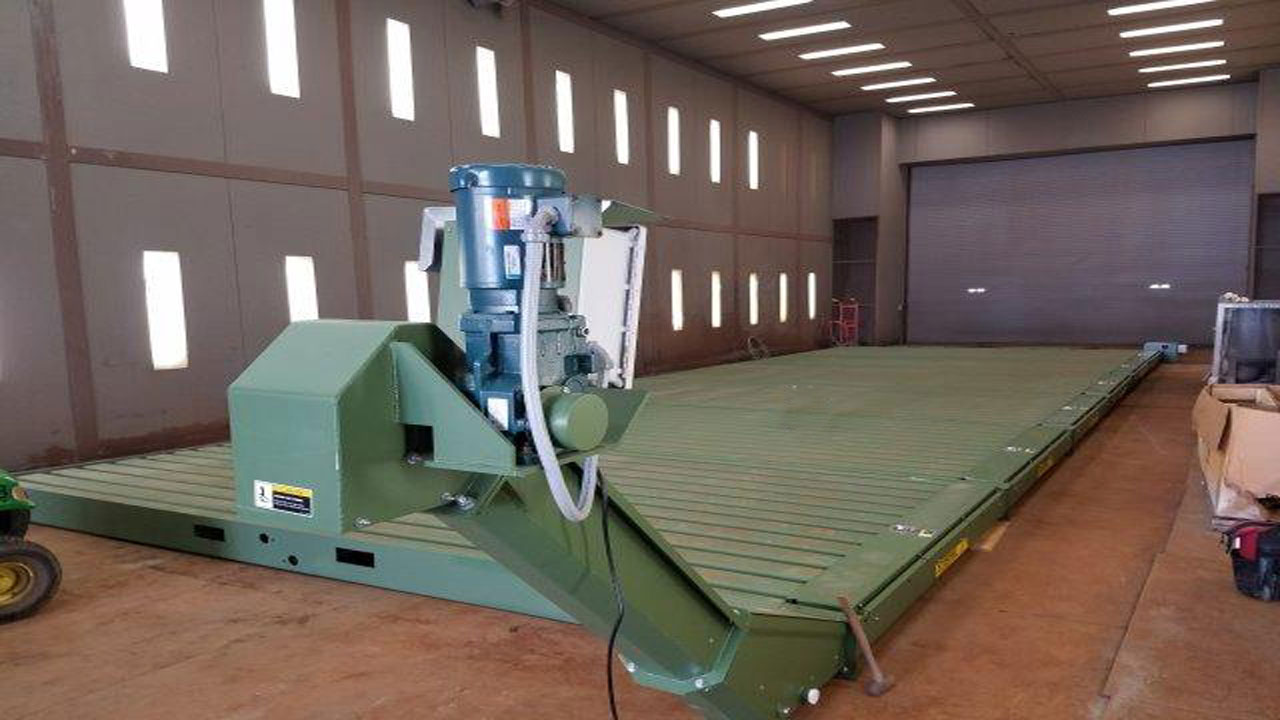

Hydropad steel wash pads with integral side gutter drag conveyor automatically removes solids that accumulate from equipment and vehicle washing.

Hydropad Gutters

This Hydropad and side gutters with drag conveyor shows lockable lids used during operation, which can open for routine maintenance if required.

Hydropad Gutters

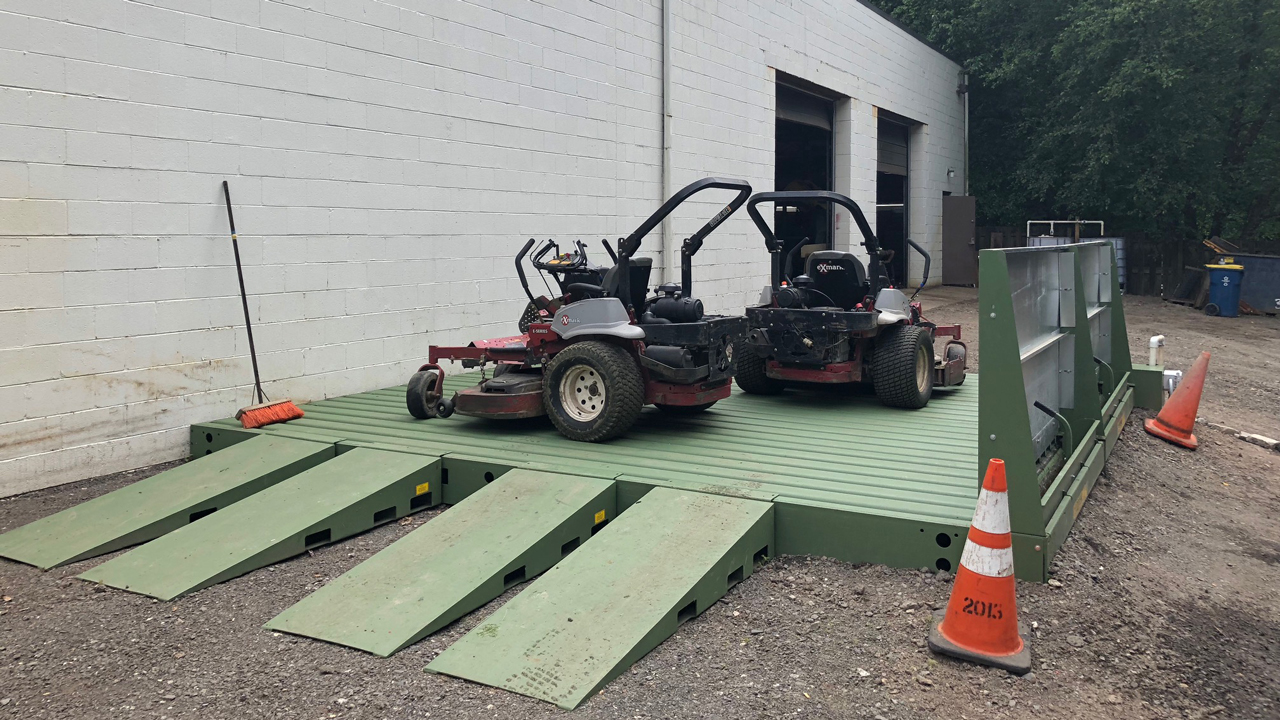

This Hydropad wash pad has a 4' high wall that provide the perfect backboard for wash rack surface cleaning. In this application, solids including grass are washed from the wash rack towards the wall. The liquid and solids flow from the wash pad surface corregations into the side gutter where flip screens are installed to separate the fines from the wash water.

Hydropad Gutters

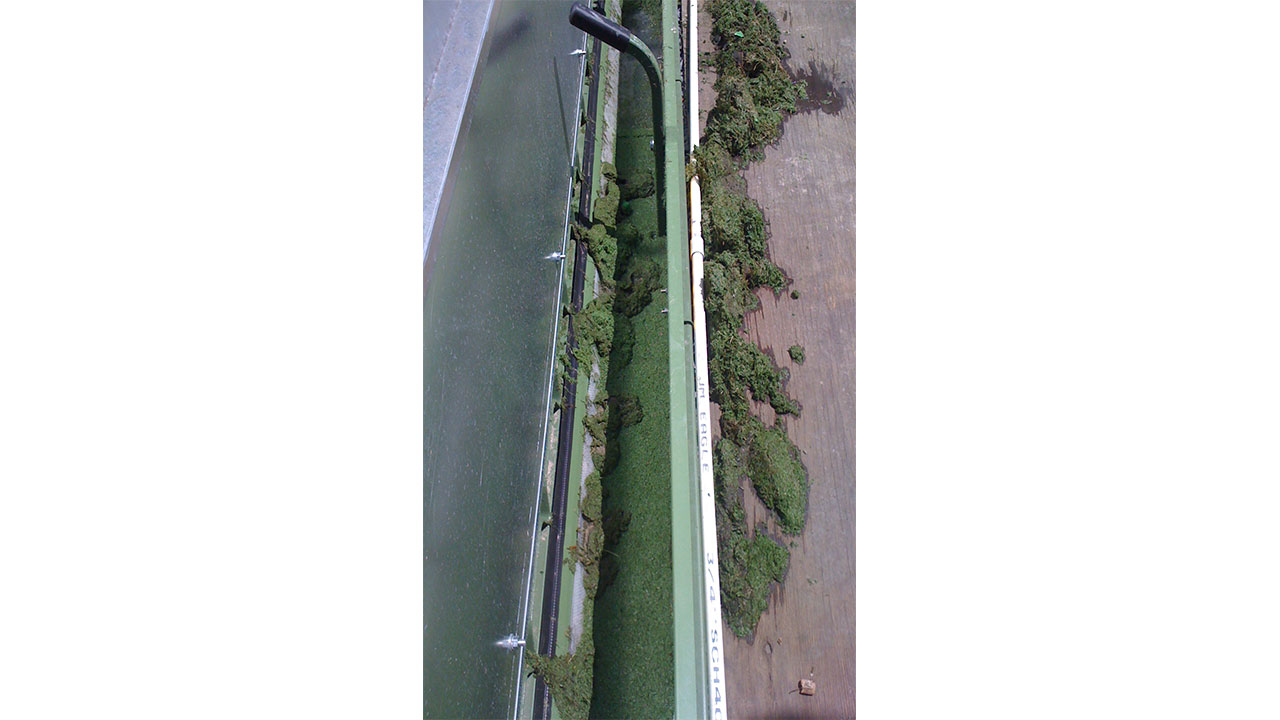

Flip screens fitted into Hydropad wash rack side gutters are manually flipped, and as show here, everything from solids to extremely fine grass particles are easily separated from wash water. No more plugged drains or sumps. This entire wash rack is installed above ground. Equipment (not construction), with no architecture, no sewer connection, set in place and the above ground steel containment wash rack is ready to use.

Collect

Solids Removal

Hydropad Gutter Attachments

The patented side gutter in the above ground steel Hydropad containment rack collects the wash water and solids generated in the washing process. With a side gutter, wash rack cleaning can take place anytime without interfering with your wash requirements.

Depending on your needs, there are several options to clean your gutters below:

  • Flip Screen
    • Designed to capture grass clippings washed from mowers and other turf equipment, the high capacity Flip Screen provides a solids separation solution that is used in a wide variety of applications to collect and separate debris from the wash water. The Flip Screen is attached to the side gutter with hinges. It can be rotated when full to deposit the dewatered debris next to the gutter for removal.
    • PDFFlip Screen Specification



  • Drive-in Clean-out tray

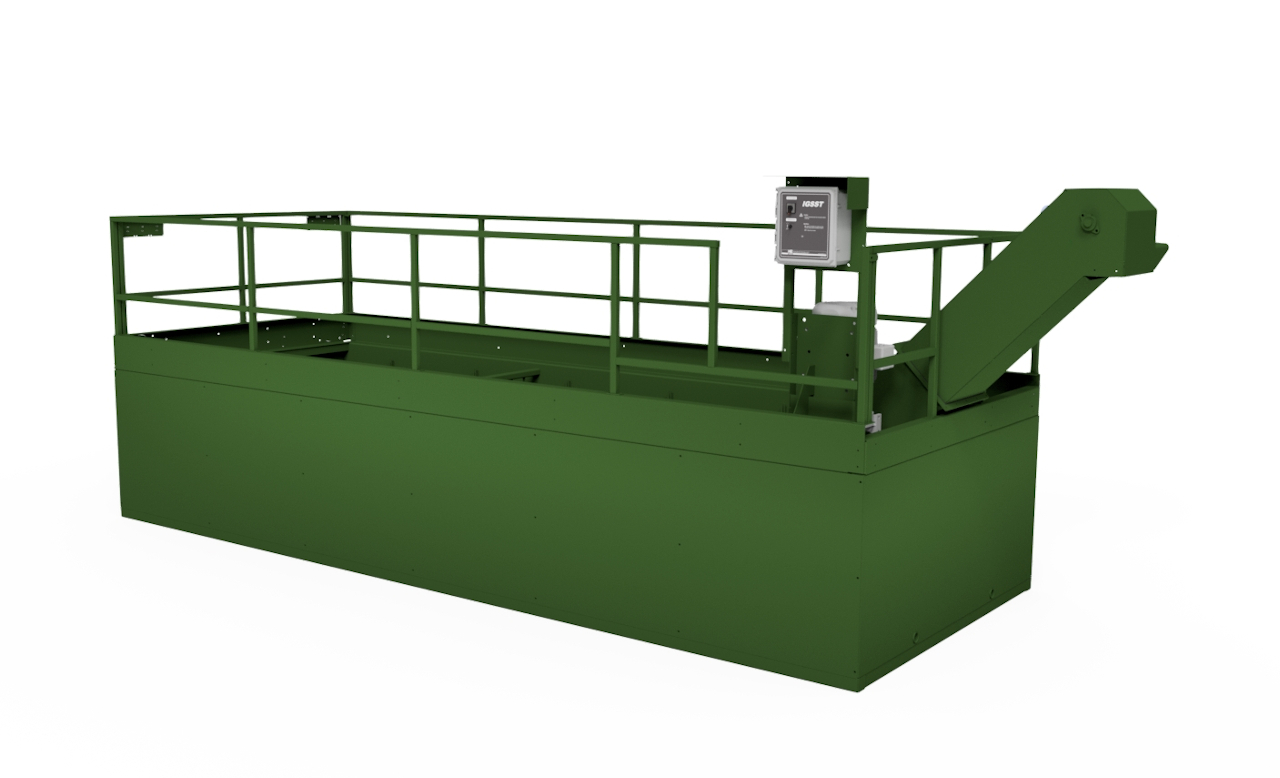

      12' Drive-in Clean-out Tray 20' Drive-in Clean-out Tray
    • The Drive-in Tray is a simple heavy duty solids settling system. Wash water flows from the Hydropad side gutter into the Drive-in Tray by gravity. Weirs located in the tray quiet the fluid flow which promotes solids settling. Clarified wash water is transferred from the integral sump tank by a pump. When solids accumulate a skid steer is used to remove them from the tray. Ideal for operations with a lot of heavy soil loads.
    • PDFDrive-in Clean-out Tray Specification



  • Drag Conveyor
    • The optional drag conveyor is an automatic solids removal system that can be combined with any Hydropad gutter. The conveyor transfers solids in the waste water to one end of the side gutter for disposal into a waste bin. Clarified wash water flows to the opposite end of the gutter where it is collected in a sump tank and then discharged by a pump.
    • PDFDrag Conveyor Specification
