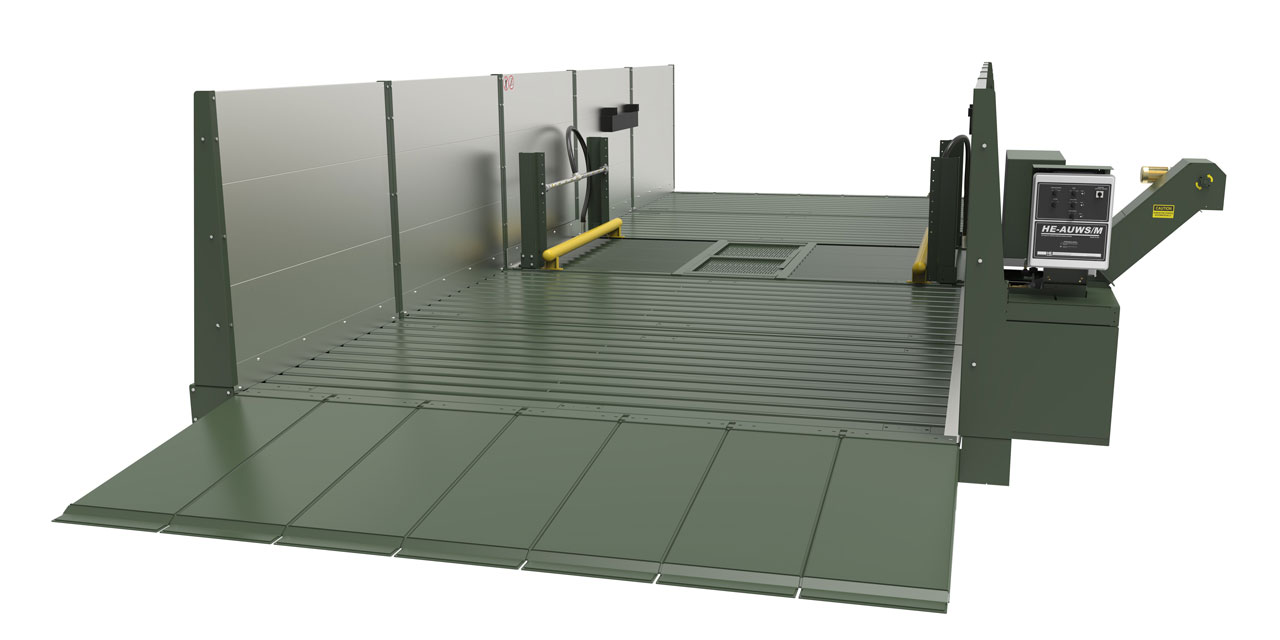

Hydropad portable wash rack can be connected to an automatic undercarriage wash system allowing for extend water recapture and recycling back into the system. With the addition of walls, available in heights up 14 feet with wind ratings over 100 MPH, water recapture is fully maximized.

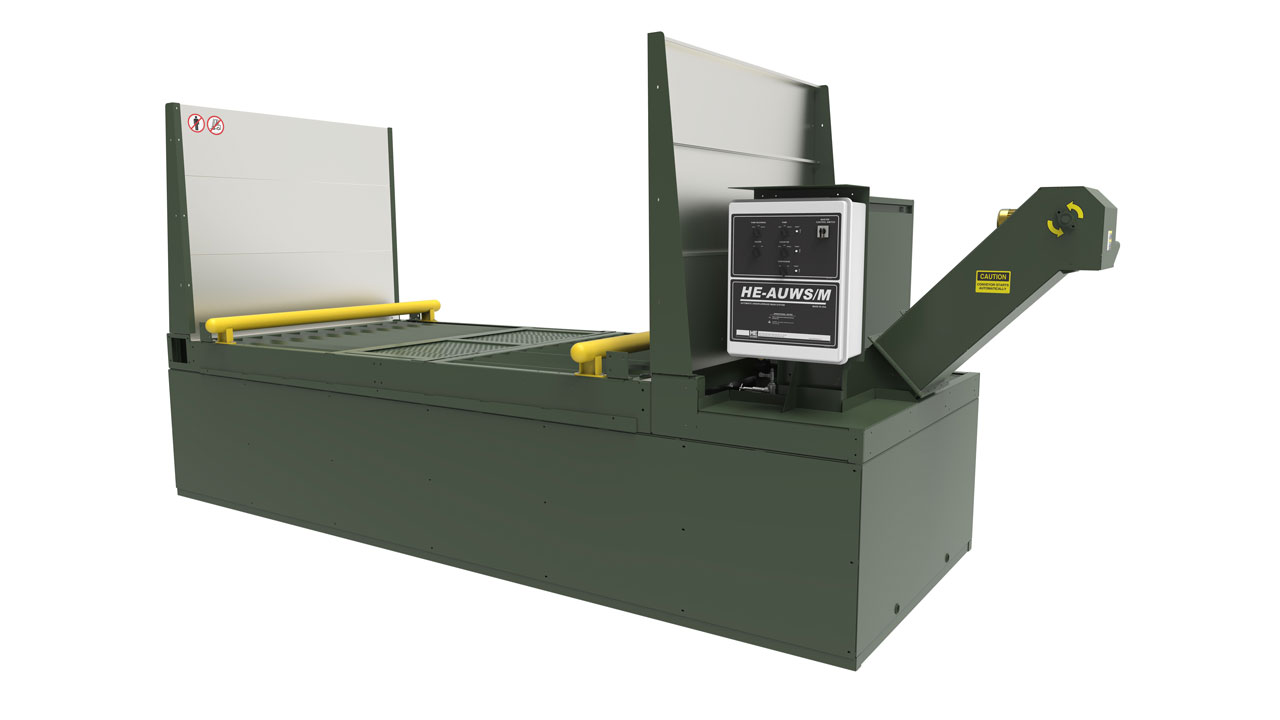

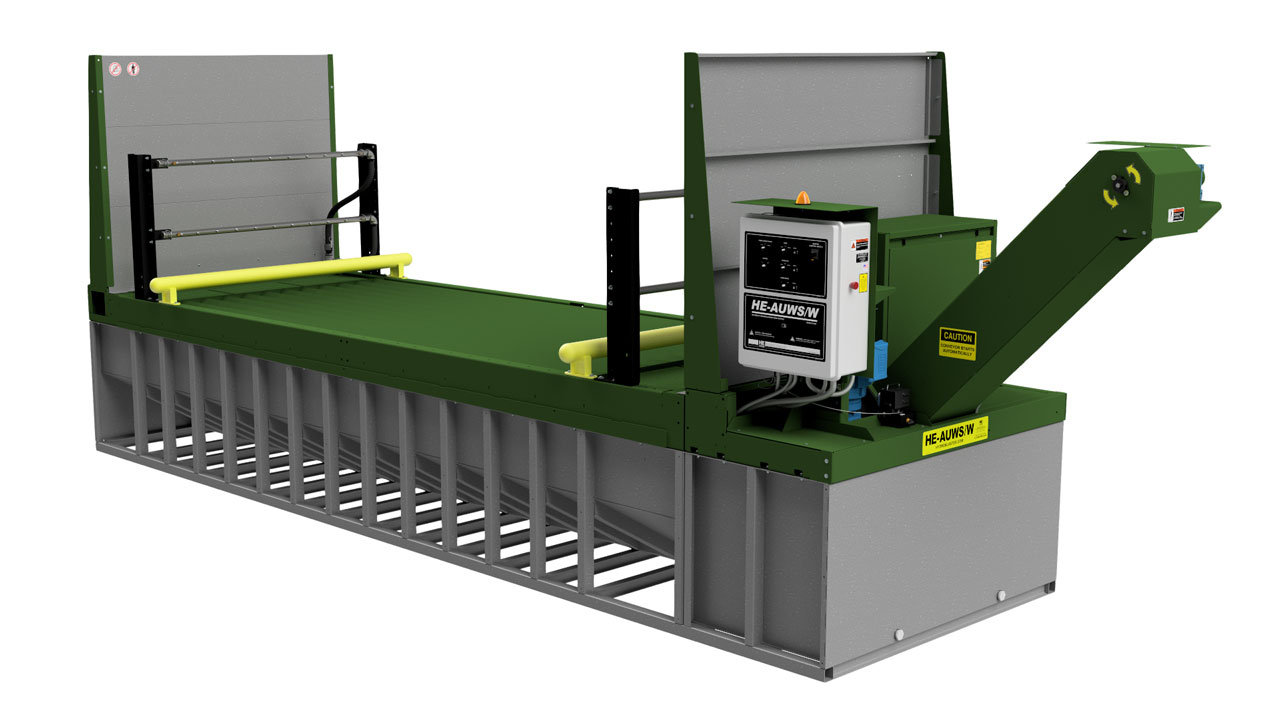

HE-AUWS/W fully automatic undercarriage and wheel wash system designed for track out control at job sites, or connection to above ground Hydropads to compliment a complete vehicle and equipment wash rack system. Maximum vehicle width is 15-3".

Conserve water by recycling collected wash water. Hydropad portable wash rack can be connected to an automatic undercarriage wash system that sprays up to an impressive 520 GPM. Sensors detect vehicle and control the system start and run time. Vehicle undercarriage and sides are thoroughly washed using recycled water. Wash water and debris flows into a solids settling tank where a drag conveyor removes solids, and water is filtered for reuse in the wash process.

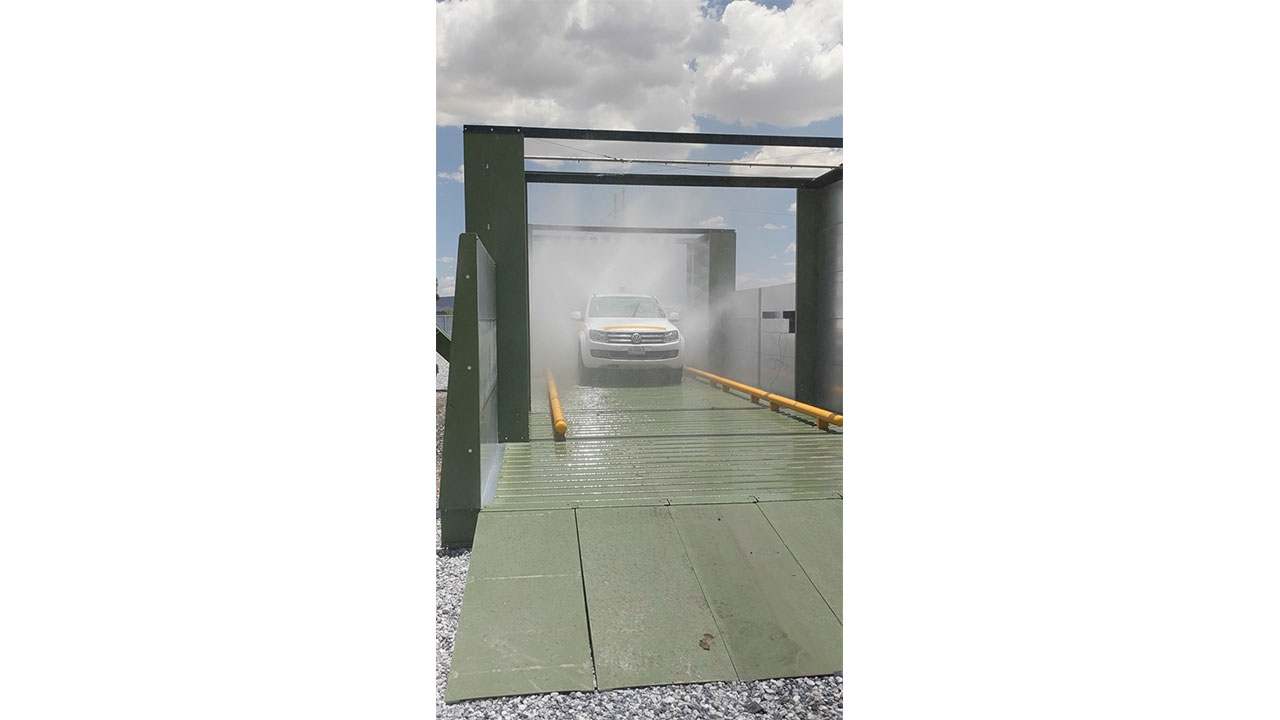

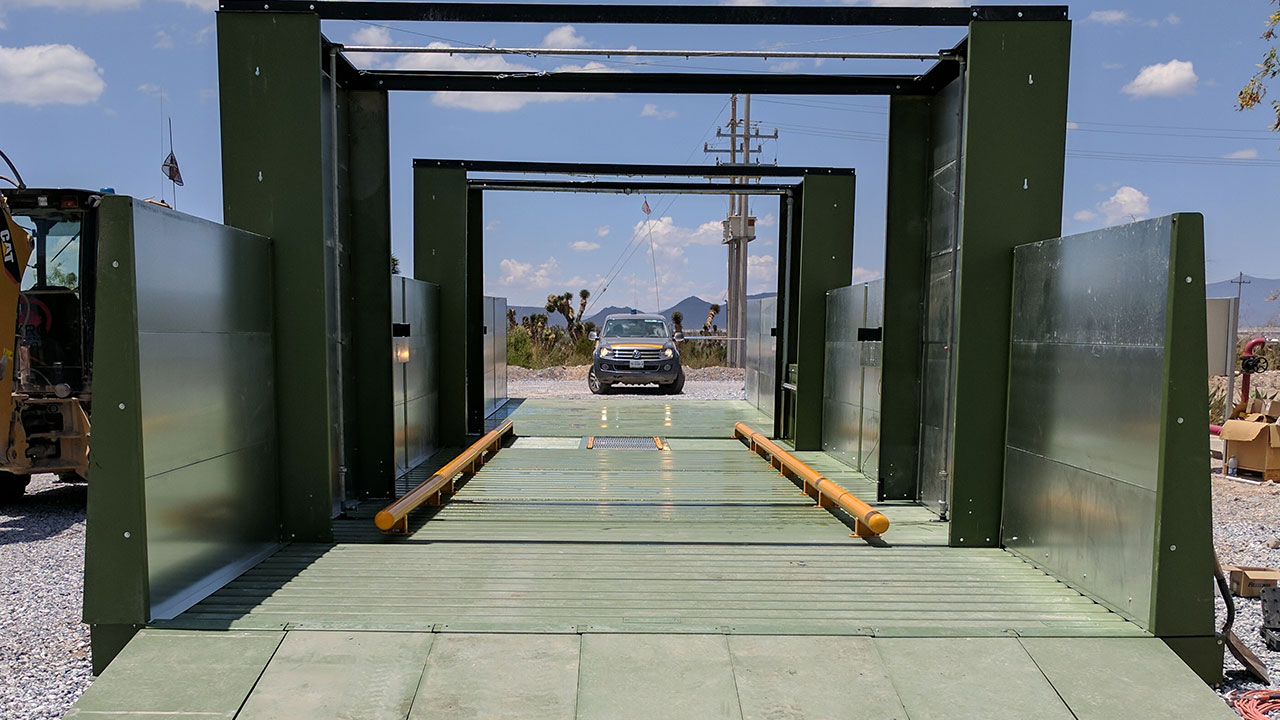

Hydropad portable wash rack with 6' high splash walls is integrated with an Automatic Undercarriage Wash System (AUWS) and fresh water final rinse arch. Sensors activate and control operation to insure proper cleaning of vehicle undercarriage, running gear, sides and top. Fresh water rinse arch removes recycled water from vehicles and replaces wash water lost to evaporation and carry off. Hydropad portable wash rack collect and return wash water and debris to the AUWS for solids separation and recycling.

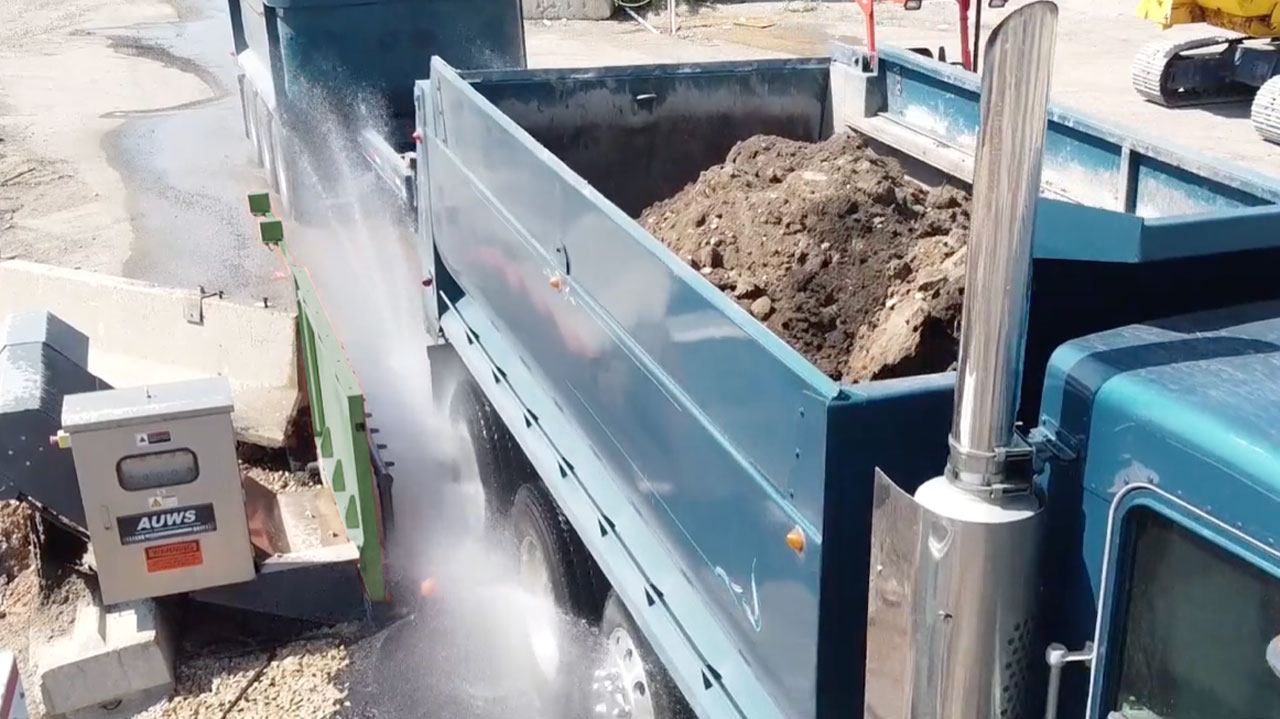

Automatic Undercarriage Wash System is spraying over 500 GPM of wash water on this truck. High soil loads are easily removed from vehicle exterior surfaces by this automatic drive through wash system. Wash water and debris is collected on Hydropad portable wash rack and returned to the wash system for solids separation and reuse. This safe, reliable, effective vehicle wash rack will support facility water conservation and environmental contamination control efforts.

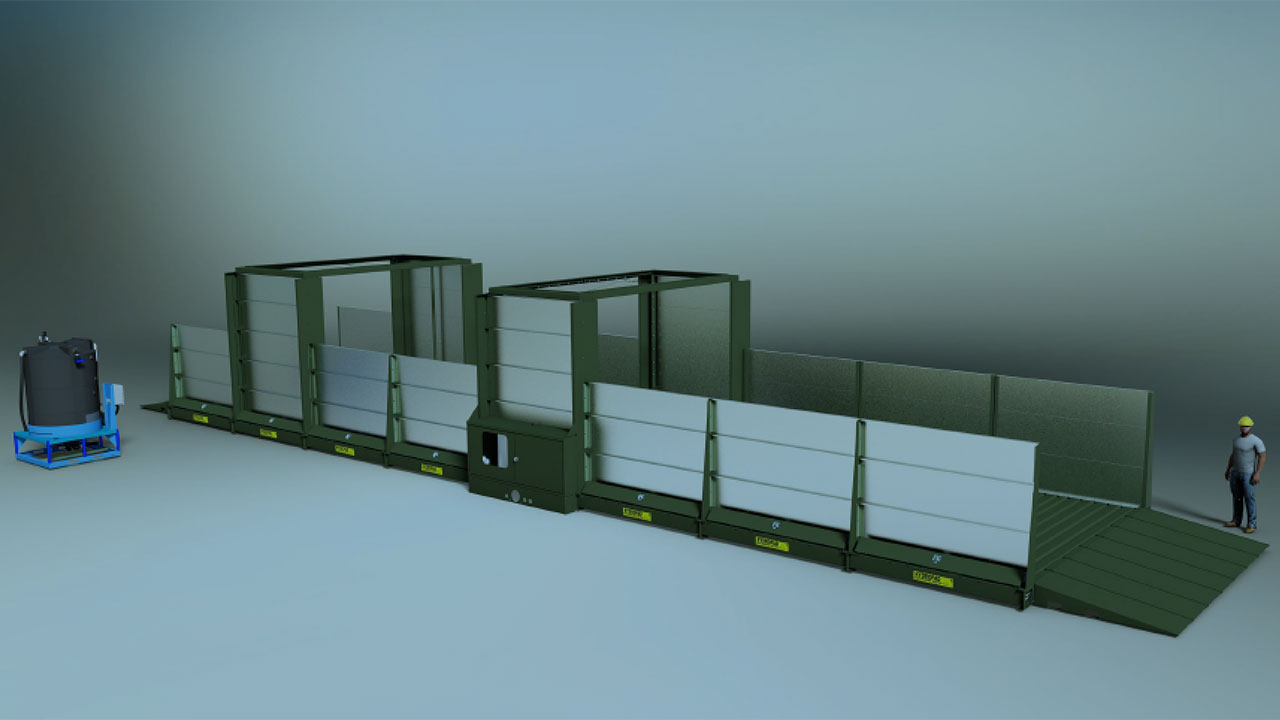

This wash rack is about 64' long (excluding ramps) and will automatically wash and rinse all exterior surfaces on vehicles up to 11' wide and 10' tall (or optionally 14' tall). An in-ground vault is required to host the Automatic Undercarriage Wash System (AUWS) but remaining wash rack components are bolted together on a slightly sloped grade that allows water and debris that lands on wash rack to flow back to the AUWS. Limited construction requirements insure fast installation.

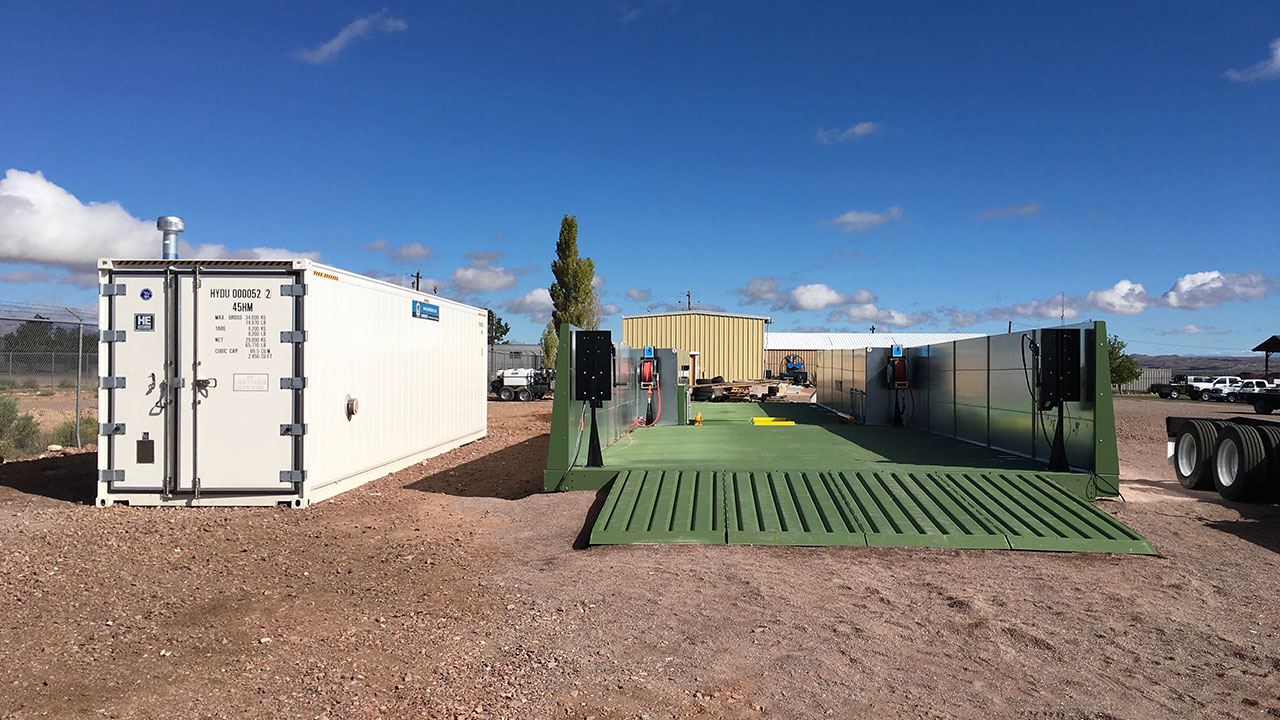

Hydrosite portable equipment enclosure is a container-based insulated equipment building. Its located adjacent to a wash rack that includes an Automatic Undercarriage Wash System. Presure washer and wash water filtration systems are factory installed in the Hydrosite equipment enclosure to simplify on site assembly and insure protection from freezing.

Vehicles with up to an 11' wide outside tire width can be washed with the Automatic Undercarriage Wash System (AUWS). This portable wash rack includes 20' wide Hydropad wash rack that allow cleaning with Hydroblaster pressure washer and water cannon high-volume water cannon after the AUWS has removed most of the debris. Wash water and debris flow from wash pads to AUWS where they are separated. Wash water is recycled back to the washing process and solids are removed by a drag conveyor.

When environmental requirements call for dust, dirt and debris to be washed from vehicles prior to leaving the job site, this product fits the requirement.
