Polishing Filtration/Recycling System

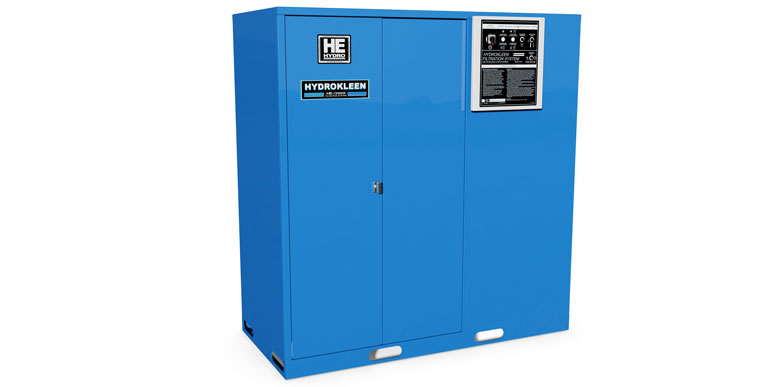

HE/3000

HE/3000 filtration systems are designed to filter wash water for recycling back to wash applications or for sewer discharge. Each system is configured with an integrated 110-gallon process tank.

HE/3000 systems control the waste stream as it is pumped or gravity fed into the polishing loop. The polishing loop includes a process tank, high volume pump, air injection system and media filter. Wastewater in the polishing loop circulates at a rate of about 100GPM through a media filter and back to the process tank to ensure superior solids removal. The media filter uses one of several available media types that target specific contaminates in the waste stream to maximize filtration performance.

The polishing loop can be fitted with optional equipment if odor control, foam control or pH adjustment is required. Up to 12 GPM of filtered wastewater can be delivered to wash applications or discharged to sewer. The integrated PLC controls and monitors system operation and promotes optimum performance.

Order Parts Request Quote


Model Specifications

PDFHE/3000
