Remote Equipment Module

This Hydropad mounted REM is integrated into the Hydropad wall. It's equipped with a wash brush and high pressure gun each supplied by spring rewind reels. The work station includes a remote control station for a Hydroblaster and an area for an operating instructions placard. Reels are outside wash area with operating controls intruding into wash area less than 7".

Hydropad Walls

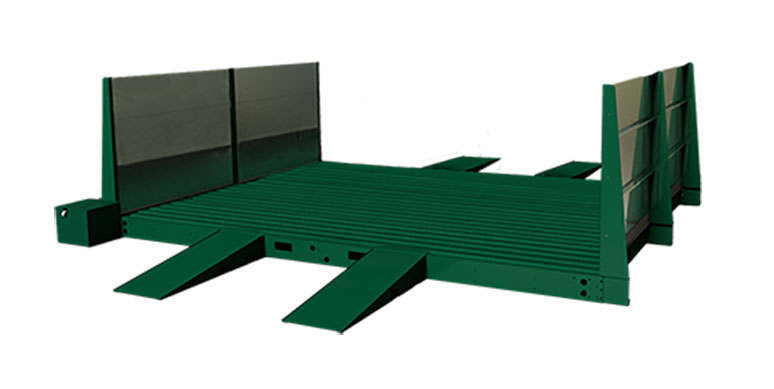

Hydropad patented splash walls improve the water capture capabilities of the Hydropad. They are easy to attach and are assembled quickly. They are available in various heights from 4' to 14'. Walls up to 8' tall are rated for wind speeds up to 70 miles per hour for outdoor applications. Because Hydropads may be arrayed on a crushed gravel surface the walls are designed to flex and move as loads transfer from one Hydropad to another without deforming.

Hydropad Ramps

Hydropad ramps provide drive on/off access to the wash rack. Ramps are available in a variety of widths and lengths and can be combined to make a continuous ramp that spans the width of the wash rack.

Hydropad Gutter Attachments

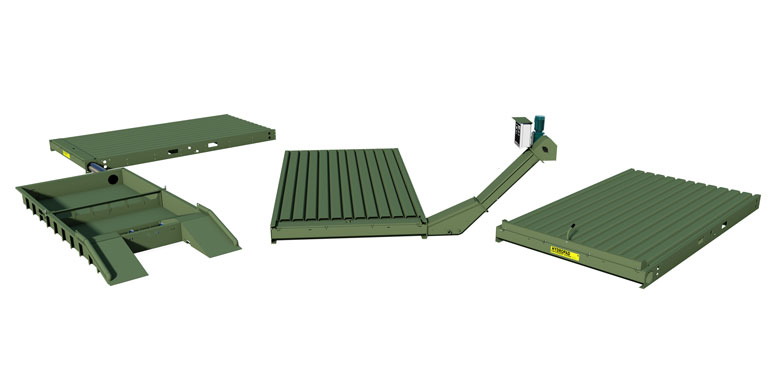

Hydropad gutter options include liquid/solid separation tools. The Drive-in Clean Out Tray (shown left) is an above ground solids settling tank. Solids are easily removed with a skid-steer. An integral gutter drag conveyor (center) separates liquids and solids which are then discharged from opposite ends of the gutter. The Flip Screen (right) catches solids and allows liquids to flow through. The screen can be manually rotated to discharge solids next to the gutter.

Hydropad

This Hydropad with integral gutter is available in a variety of sizes and capacities. It is the building block for our above ground steel containment wash racks. The work surface area of a single Hydropad may be as small as 4' x 8' or as large as 8' x 20'. Capacities are rated in tons per axle which range from 2T - 75T and by pounds per square inch (PSI) which range from 25 PSI to 200 PSI.

Recycle

Portable Wash Racks

Hydropad

Hydropad above ground steel wash water containment wash rack systems solve your wash water capture problems

  • Confine wash operations to a single area
  • Capture wash water and solid wastes
  • Separate fluids from solids
  • Promote EPA compliance
  • Reduce water usage and control discharge costs
  • Easy to deploy or re-deploy

Hydropad wash rack systems are available in an array of sizes and capacities and are easily configured to satisfy your wash rack requirements.

Why Thousands of Hydropads are in Daily Use
  • Durability! Hydropads are more durable than concrete
  • Safety Rail System walking surface provides a non-skid walking area
  • Our patented side gutter equals simple and easy cleanup of water and solids
  • Hydropads are the strongest portable wash pad in existence
  • Optional galvanized steel sidewalls contain water splash
Request Quote

Learn More about Hydropad Attachments

Hydropad Walls
Hydropad Ramps
Hydropad Gutter Attachments
Remote Equipment Control Module
Automatic Undercarriage Wheel Wash System

Model Specifications

PDF8' X 8' Hydropad
PDF8' X 10' Hydropad
PDF8' X 12' Hydropad
PDF8' X 14' Hydropad
PDF8' X 16' Hydropad
PDF8' X 20' Hydropad
